Bergquist Gap Pad VO Thermal silicon film CPU power supply flame retardant
Product features/Applications:
- Thermal conductivity: 0.8 W/m-K,electrically isolating
- Enhanced puncture, shear and tear resistance, conformable gap filling material,
- For power supply; Automotive electronics; Motor control; Power semiconductor.
PRODUCT PARAMETERS
Test item
| Test method | Unit | Imperial value | Meteic value |
Color
| - | - | Gold / Pink | Gold / Pink |
Reinforcement Carrier
| - | - | Sil-Pad | Sil-Pad |
Thickness (1)
| ASTM D374 | inch / MM | 0.020 ~ 0.250 | 0.508 ~ 6.350 |
Inherent Surface
Tack | - | 1 sided | 1 | 1 |
Density
| ASTM D792 | g/cc | 1.6 | 1.6 |
Heat Capacity
| ASTM E1269 | J/g-K | 1.0 | 1.0 |
Hardness
| ASTM D2240 | Shore A | 40 | 40 |
Young's Modulus
(2) | ASTM D575 | psi / kPa | 100 | 689 |
Dielectric Breakdown Voltage | ASTM D149 | Vac | 6000 | 6000 |
Volume Resistivity
| ASTM D257 | Ohm-meter | 1×1011 | 1×1011 |
Continuous Use Temp
| - | °F / ℃ | -76 ~ 392 | -60 ~ 200 |
Flame retardant rate
| UL 94 | - | V - 0 | V - 0 |
Dielectric constant
| ASTM D150 | 1000 MHz | 5.5 | 5.5 |
Teat conductivity
coefficient | ASTM D5470 | W/m·K | 0.8 | 0.8 |
THERMAL PERFORMANCE vs. STRAIN
Deflection (% strain) | 10 | 20 | 30 |
Thermal Impedance (°C-in2/W) 0.040" (3) | 2.47 | 2.37 | 2.24 |

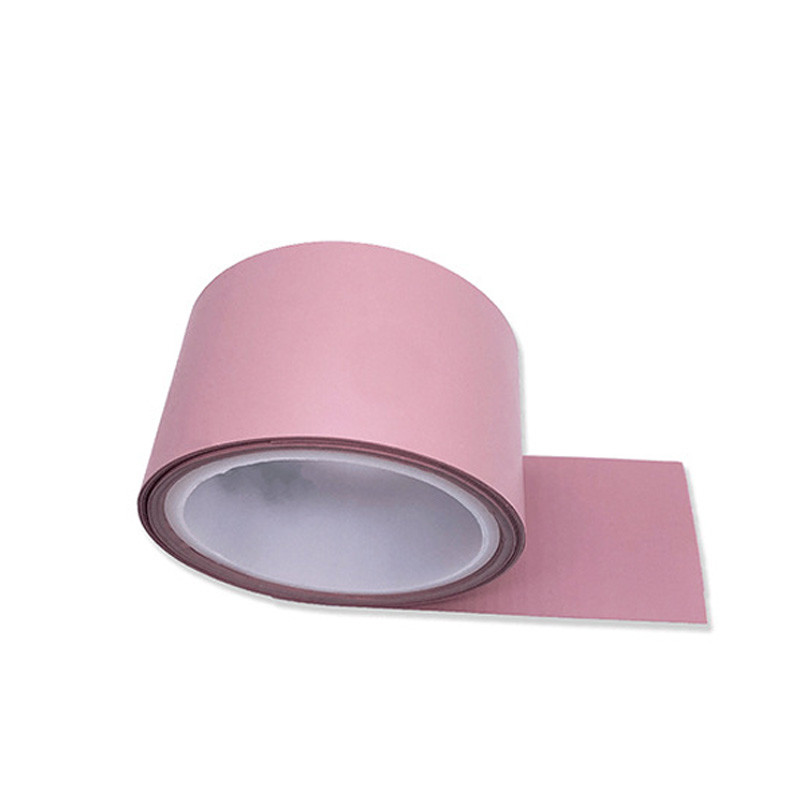

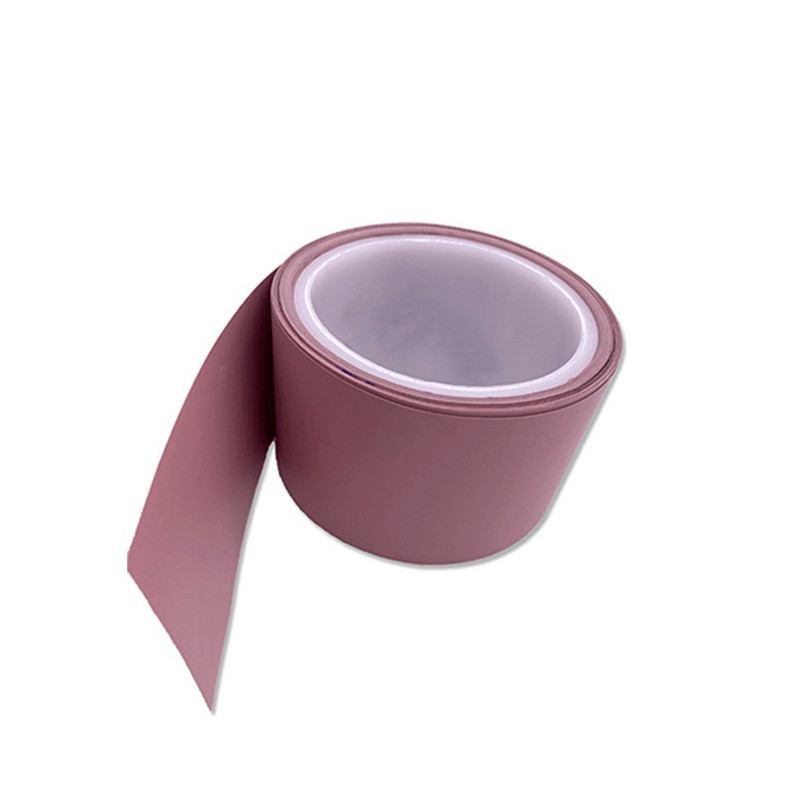

PRODUCT DISPLAY
PACKING OF TRANSPORT
COMPANY PROFILE
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
COMMON PROBLEM
1.)How to order from Pufeng?
Just send us an email or call us.
2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.
3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
